C LEVEL- AND TEMPERATURE CONTROLLER TYPE: CARBO-M

C LEVEL- AND TEMPERATURE CONTROLLER TYPE: CARBO-M

  • Menu-guided operation
  • Foil keyboard
  • Exact control for C level and temperature
  • Soot limit monitoring
  • Universal application by virtue of the optional connection of O2, O2+CO2, CO detectors, and two thermocouples (type S or K)
  • O2 probe monitoring (checking Ri and EMF, purging)
  • Simultaneous measurement with two probes for super version
  • Automatic change to spare probe
  • Program memory with 99 setpoint programs for C level and temperature
  • Analog output, for example, for recorder connection
  • C level correction (for example, by means of foil specimens)
  • Options: · Serial interface for example, for visualization software” CARBOVIS”
Download in pdf format

Request for TEST

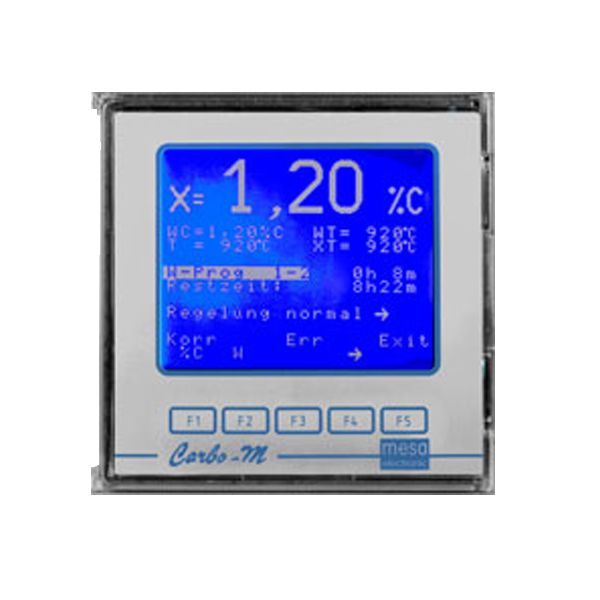

The Carbo-M is a dual-channel measuring and control system for C level calculation and C level and temperature control in the furnace atmosphere of heat treatment plants.

By means of switch settings on the rear panel of the instrument, Carbo-M can be easily adapted to match existing facilities. Alternat- ions in the data acquisition scheme, for example, change of gas analyzers to oxygen probes, can be effected without difficulty. A currently available analytical method for determining the carbon content in furnace atmospheres is the indirect measurement of the oxygen content in the furnace with zirconium oxide probes. Carbo-M provides special support for these methods. Data sheets on probes and other equipment are available on request.

Construction:

Metal housing for mounting in control panels, in conformance with DIN 40050
Type of protection IP 54 (front), as specified in DIN 50050

Dimensions:

144 x 144 x 300 mm

Auxiliary voltage:

230 Vac ± 10 % 50/60 Hz

Power consumption:

About 15 VA

Digital Input:

-IN 0:
program release with setpoint program in progress: otherwise, controller locked
IN 1: program continuation in succession
IN 2: input disable

Measuring range:

0,15…1,5 % C, or as specified by the customer

Optionales Zubehör:

Rel-Box
PRL-Box
Klemmleistenadapter

Attention

If you use L-probe and O2 -probe you cann ́t connect an additional Reference junction.
Thermocouple,type K or S
Reference junction, type K or S (also mixed)
Terminaltemperature(Pt100)
External set value:serialinterface

Analog Input:

O2 measuring probe, cell voltage directly or through amplifier
O2 measuring probe and CO analyzer
CO2 analyzer
CO2 analyzer and CO analyzer
O2 probe and L-probe
O2probe,L-probeandCOanalyzer
L-probeandCOanalyzer
L-probeandCO2 analyzer
L-probe,CO2analyzerandCOanalyzer
L-probeand L-probe
O2 probe and O2 probe
CO2 analyzer and O2 probe
