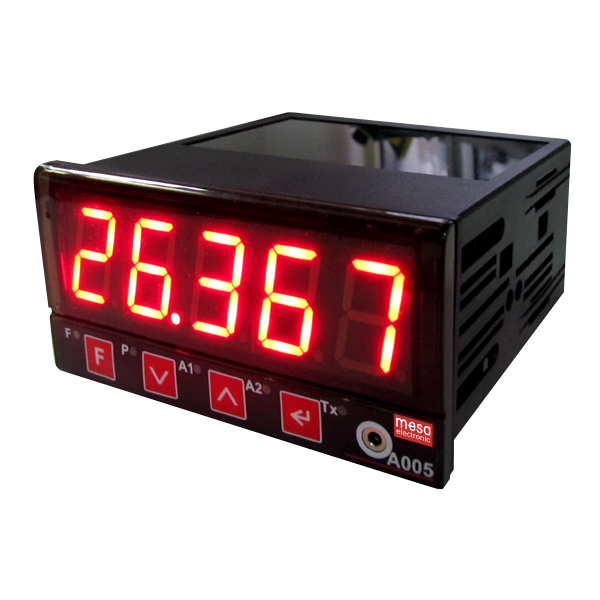

FREQUENCY MEASUREMENT DIGITAL INDICATOR A005F

FREQUENCY MEASUREMENT DIGITAL INDICATOR A005F

FUNCTION

A005f is a high precision frequency and period of the signal digital measurement device. Five digits LED with 20mm height, allows reading the measurement values from a big distance. Advance auto range algorithm is implemented. The device always count and measure with maximal resolution and accuracy, i.e. all five digits are significant with accuracy better than 0.01% in the whole temperature range and measurement range of 0.1 Hz to 50 kHz
Download in pdf format

Request for TEST

ADDITIONAL OPTIONAL MODULES:

  • Galvanically isolated universal analog output
  • RS485 Modbus RTU interface
  • Sensor supply module

CHARACTERISTIC:

  • Compact 96×48 housing for panel mount
  • Large 5 digit LED display with 20mm height
  • Status indication by LED’s at the front panel
  • 85…265VAC or 10…36VDC power supply
  • Full configurable via function keys on front panel or by PC via Serial interface

ADDITIONAL MEASUREMENT FUNCTIONS:

  • User-defined scaling of the measurement results in two points
  • Correction algorithm of measurement in one or two points
  • Linearization table up to 10 points
  • Hold function
  • Tare function
  • Min/max memorizing function

FREQUENCY/PERIOD MEASUREMENT:

  • Auto range five digits resolution measurement method.
  • Programmable comparator threshold voltage from 0V to 11V
  • Programmable Pull-up and Pull-Down resistors
  • Separate DC and AC signal input
  • +12V non-isolated sensor power supply.
