DEWCHECKER 0.1
ADVANTAGES:
- Easy handling
- High measuring certainty and
- Insensitivity to gases containing dust
- Robuste construction
Design:

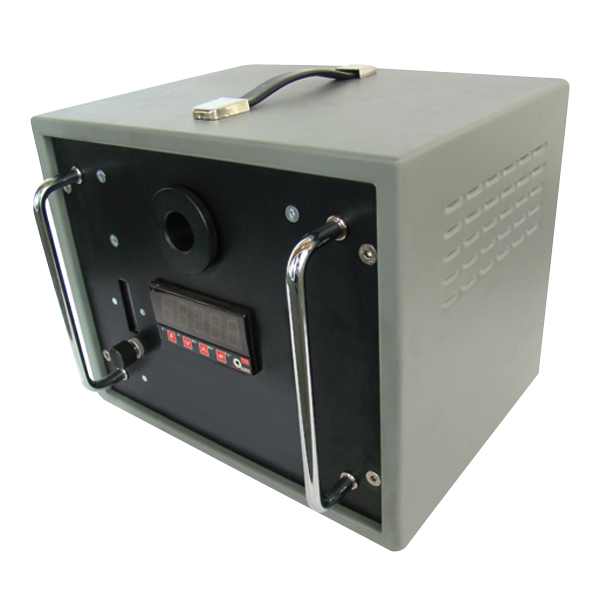

Portable steel housingDimensions:
330x310x320 mm (WxHxD)Weight:
Approx. 17 kgDegree of Protection:
Housing IP 20 according to IEC 60529Front panel IP 40 according to IEC 60529
Ambient Temperature:
10…40°C in during operation0…50°C during storage
Power Supply:
230 or 115 VAC ±10% 50…60 Hz (please specify)Measuring Gas Connectors (hose connectors):
Input: Tube outer diameter 5…6 mmOutput: Tube outer diameter 5…6 mm
Built-in measuring pump
Messgasdruck:
±50 mbarMeasuring Range:
-80…+20°C (indirect measurement with capacitive sensor)Measuring Accuracy:
±2°C (indirect measurement with capacitive sensor)Resolution in steps of::
0,1°CMaintenance Interval:
Every yearAnalog Output:
-80…+20°C, 0…20 mA or 4…20 mA or 0…10 V galvanic isolated, 4…20 mA is the predefined settingPin Assignment:
Current output: Pin 6, GND = Pin 2Voltage output: Pin 7, GND = Pin 3
Digital Output:
Either RS-485 / RS-422 four-wire or RS-485 two-wire (please specify) Isolated interface with Modbus-protocolPin Assignment:
Four-wire: GND = Pin 1, TxA = 9, TxB = 5, RxA = 8, RxB = 4Two-wire: GND = Pin 1, A = 9, B = 5
EQUIPMENT
Power cord
product code 011-0520Connection pipe yellow
product code 015-71038 mm with adapter approx. 3 m
/Connection pipe yellow
product code 015-71026 mm approx. 3 m
product code 24382Filter material
product code 24221Spare fuse (230V)
product code 027-0005Spare fuse (115V)
product code 027-0011Spare sinter filter insert
product code 2418
