FOIL TESTING SET FPG 1.1 WITH TERMINAL T400



ADVANTAGES OF T400:

  • Number of foils defined by the user
  • Fast and reliable measurement
  • The new algorithm will detect mechanical vibration and compensate for it
  • User can choose between 5 “filter algorithms” to use foil tester in “laboratory or rough environments”
  • Measurement accuracy of 0.01[mg]
  • The direct announcement in %C and [mg]
  • Portable analysis system
  • Clear text operator guidance via display
  • Foil can be weight with or without PC
FOIL TESTING SET FPG 1.1 WITH TERMINAL T400

PRINCIPLE OF OPERATION:

Using the foil tester FPG 1.1 you can directly determine and indicate the C-level in furnace atmospheres by foil tests. Additional calculations reflecting the difference in weight of the foils are not necessary! The terminal display indicates each step clearly, so the instrument can be operated error-free.

SPECIAL FEATURES:

  • Quick, trouble-free determination of actual carbon level values in furnace atmospheres
  • Simple operation meaning menu assistance described clearly in the following languages: German, English, Italian, French, Spanish, Portuguese and Czech
  • Automatic and quick indication of the weight percent carbon in the furnace atmosphere, directly in %C
  • Different foils can be checked simultaneously
  • Automatic calibration
  • Storage of data
  • Accessories included

TECHNICAL DATA



Design: Bench-top housing
Weight: 10,25 kg
Power Supply: 85-264 VAC – 50-60 Hz
Measuring Accuracy: 0,01 [mg]
Measuring Range: 90 [mg] bis 120 [mg] 0.01…1.99 %C
Foil Basic C-Level Values: In %C
Operation: Menu-assisted via terminal
Dimensions: 200x225x395 mm (WxHxD)
Degree of Protection: IP 54 to DIN 40050
Power Consumption: Max. 15 W
Resolution: 0.001 %C
Climatic Conditions: 10…40 °C
5…95 % relative humidity, non-condensing
Readout: Display with 4×16 characters
Response Time: Approx. 15 s

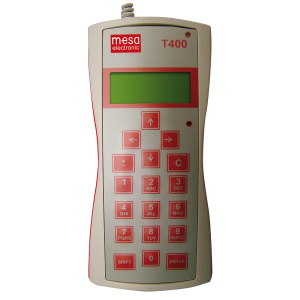

 T400



ADVANTAGES OF T400:

  • Measurement storage in internal EEPROM
  • USB interface. All measured values, including furnace name, date, and time can be transferred to a USB stick
  • Data evaluation and processing are possible via additional software “Foil Test View” which is included
  • Large display with 4 lines and 16 characters
  • Documentation possible according to ISO9001
T400

PRINCIPLE OF OPERATION:

Using the foil tester FPG 1.1 you can directly determine and indicate the C-level in furnace atmospheres by foil tests. Additional calculations reflecting the difference in weight of the foils are not necessary! The terminal display indicates each step clearly, so the instrument can be operated error-free.

TECHNICAL DATA



Standard Foils : 5
Max. Names: 40 (user and “test point names”)
Max. Foils: 30
Max. Speicher: 100 measurements in EEPROM

SPECIAL FEATURES:

  • Quick, trouble-free determination of actual carbon level values in furnace atmospheres
  • Simple operation meaning menu assistance described clearly in the following languages: German, English, Italian, French, Spanish, Portuguese and Czech
  • Automatic and quick indication of the weight percent carbon in the furnace atmosphere, directly in %C
  • Different foils can be checked simultaneously
  • Automatic calibration
  • Storage of data
  • Accessories included

ACCESSORIES

Calibration weight 95mg with case product code 100-0501
Test foil product code 630-0202
Antistatic Tweezers product code 370-1010
Round wooden stick product code 100-0601
Acetone container product code 380-0010
