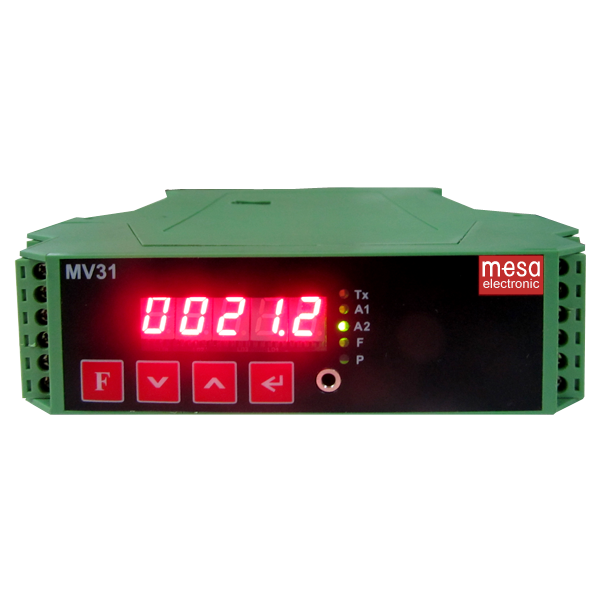

UNIVERSAL DIGITAL INDICATOR MV31







FUNCTION

MV31 is a universal high precision process digital indicator designed for a wide range of input sensors and signals. Five digits LED with 20mm height, allows reading the measurement values from a big distance.

UNIVERSAL DIGITAL INDICATOR MV31

ADDITIONAL OPTIONAL MODULES:

  • Galvanically isolated universal analog output
  • Additional analog input
  • RS485 Modbus RTU interface
  • Two Relay digital outputs with 230Vac / 3A
  • The digital isolated input module
  • Sensor supply module

CHARACTERISTIC:

  • Compact 150×139,60×34 mm in ABS housing
  • Large 5 digit LED display with 20mm height
  • Status indication by LED’s at the front panel
  • 85…264VAC or 10…36VDC power supply
  • Fully configurable via function keys on the front panel or by PC via RS232 interface
  • Max working and storage temperature 70 ºC

MEASUREMENT FUNCTIONS:

  • Wide range of input signal types software configurable, 24bit resolution and high accuracy
  • User-defined scaling of analog inputs in two points
  • Correction algorithm of measurement in one or two points
  • Advance Linearization table up to 10 points, with spline interpolation in between.
  • Hold function
  • Tare function
  • Min/max memorizing function
  • Hardware and software filtering
  • Special working with one or two electrochemical sensors in auto-calibration mode.

OPTIONAL MATHEMATIC FUNCTION

  • Dew point [°C] in range – 30oC…+30oC
  • O2 concentration [%] in the range 10-29… 100%
