NT46 SINGLE



AREAS OF APPLICATION:

  • Heating systems
  • Industrial processes
  • Process engineering
  • Gas analysis
  • Heat treatment

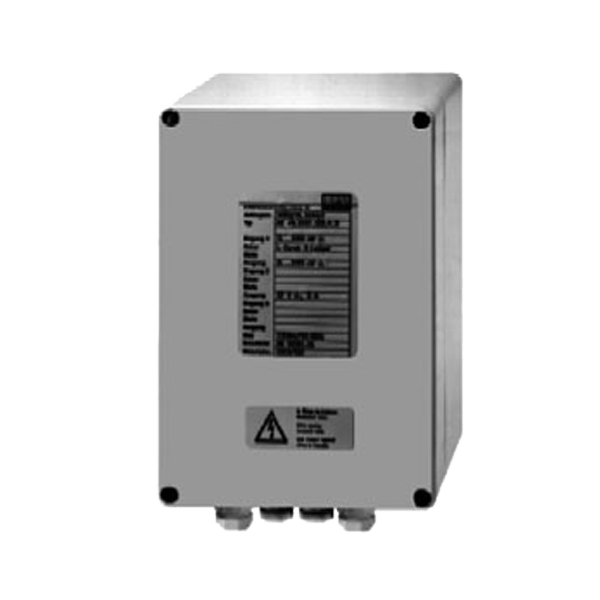

NT46 (SINGLE)

FUNCTION

The NT 46 power supply unit controls the temperature in the measuring chamber, in respective sensors(H2 or CO or CO2), and supplies voltages for the sensors.

TECHNICAL DATA



Construction : Alu housing for wall mounting
Dimensions: 260 x 160 x 90 mm (WxHxD)
Connection: Springs screw
Wire cross section: max. 2,5 mm
Connectiontosensor: 8-pol. plug with ca. 2,1 m cabel (standard)
is installed
Cablefeeds: 4 PG screw-type glands
Auxiliary voltage: 115 or 230 Vac ± 10 % / 50-60 Hz,
max. 100 VA
Measuring range / Outputs: • H2:0…20,0 % = 0…20 mA 10…80,0 % = 2,5…20 mA
• CO: 0…35,0 % = 0…20 mA 0…60,0 % = 0…20 mA
• CO2: 0…3,00 % = 0…20 mA
Climate: • Storage: -10…+70 °C
• Operation: 0…+50 °C
• 5…95 % rel. relative, humidity
